Every chemistry textbook says the electron was discovered by J. J. Thomson. What it rarely shows is how he did it, and the method is a short chain of Class 12 physics you can follow yourself. This post covers who Thomson was, the experiment in his own description, a worked example with numbers, and what a student can learn from his way of working.
Who was J. J. Thomson?
According to his Nobel Prize biography, Joseph John Thomson was born on 18 December 1856 in Cheetham Hill, Manchester. He studied at Owens College, Manchester, then at Trinity College, Cambridge. From 1884 to 1918 he was Cavendish Professor of Experimental Physics at Cambridge, succeeding Lord Rayleigh. The same page records that he announced his discovery of the electron in an evening lecture at the Royal Institution on Friday, 30 April 1897.
He received the 1906 Nobel Prize in Physics "in recognition of the great merits of his theoretical and experimental investigations on the conduction of electricity by gases". His son, George Paget Thomson, later won the 1937 physics prize. J. J. Thomson died on 30 August 1940.
What were cathode rays, and why was there an argument?

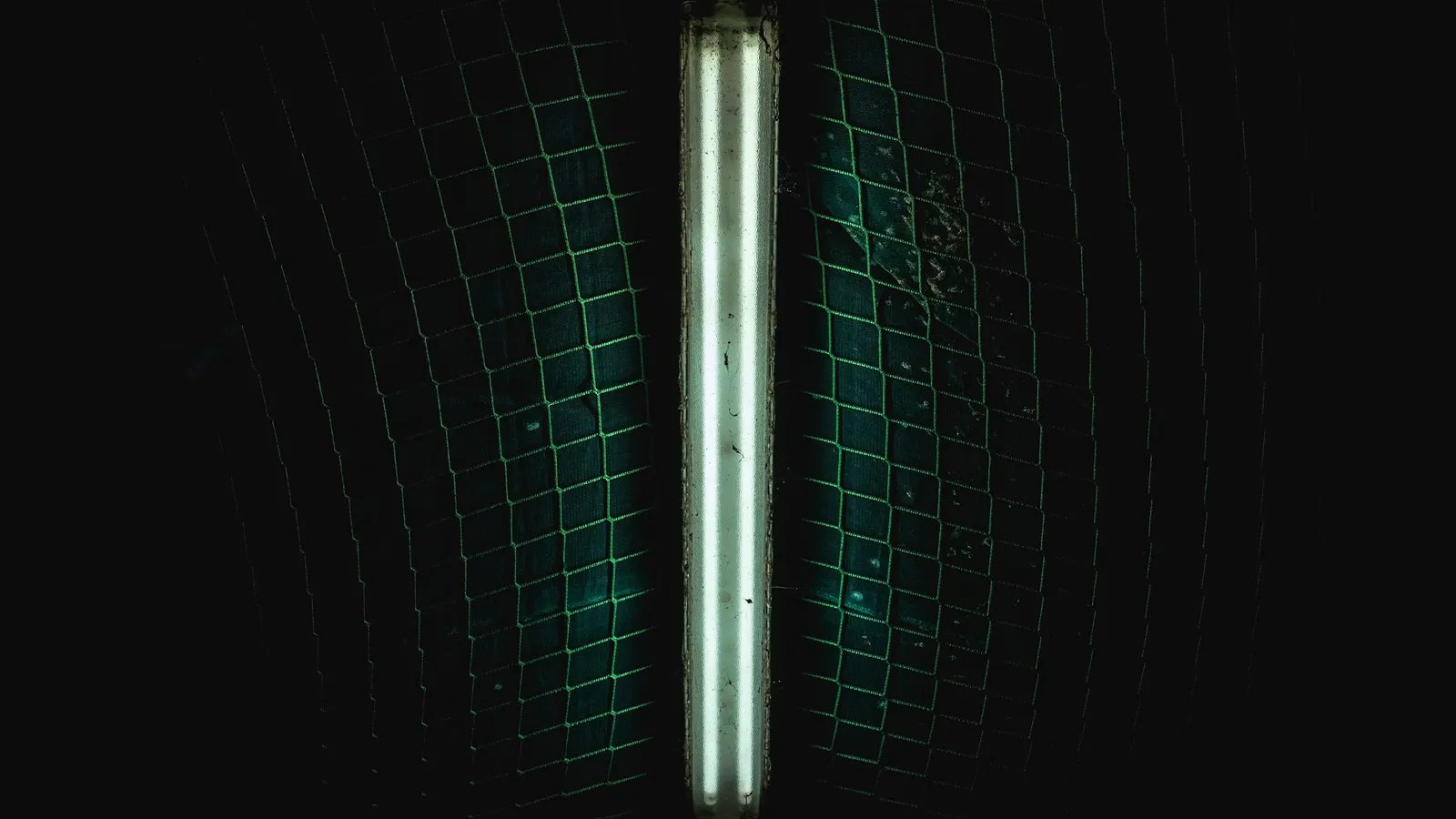

When a high voltage is applied across a glass tube with very little gas left inside, the glass glows green opposite the cathode. In his Nobel lecture, Thomson described a keen controversy: most German physicists thought the rays were some kind of wave in the ether, while many English physicists thought they were negatively charged particles. Earlier attempts to deflect the rays with an electric field had failed. Thomson pumped out more of the gas until the remaining traces no longer screened the field, and then the rays bent in the direction expected for negative charge.
How did Thomson measure e/m?
His lecture lays out two steps.
Find the speed. A magnetic field B pushes the moving particle sideways with force evB. An electric field E pushes with force eE. Arrange the fields to oppose each other and adjust them until the glowing spot does not move. Then eE = evB, so v = E/B.
Measure the deflection. Switch off the magnetic field. The electric field now gives a constant sideways acceleration eE/m while the particle crosses plates of length l in time l/v. Thomson compared this to a bullet fired horizontally and falling under gravity: the sideways shift is y = ½(eE/m)(l/v)². Rearranging gives e/m = 2yv²/(El²).
He found the same value whatever gas was in the tube and whatever metal the electrodes were made of. In the units he used, about 1.7 × 10⁷, which is 1.7 × 10¹¹ C/kg in SI units. The largest value known before, for the hydrogen ion in electrolysis, was about 1,700 times smaller. Since other experiments showed the charges were about the same size, he concluded that the mass of the "corpuscle" was only about 1/1,700 of the hydrogen atom's mass.
Worked example: Thomson's method with numbers
Suppose E = 1.5 × 10⁴ V/m and B = 5.0 × 10⁻⁴ T leave the beam undeflected.
Speed: v = E/B = (1.5 × 10⁴)/(5.0 × 10⁻⁴) = 3.0 × 10⁷ m/s.
Now switch off B. With plates 5.0 cm long, the spot moves y = 3.7 mm.
e/m = 2yv²/(El²) = (2 × 3.7 × 10⁻³ × 9.0 × 10¹⁴)/(1.5 × 10⁴ × 2.5 × 10⁻³) = (6.66 × 10¹²)/37.5 ≈ 1.78 × 10¹¹ C/kg.
The modern CODATA value from NIST is 1.758820 × 10¹¹ C/kg in magnitude, so this example lands within about 1%.
Mistakes students make with this set-up:
Squaring the wrong thing. The deflection depends on (l/v)², the time inside the plates squared. Forgetting to square v is the most common slip.
Unit conversion. Plate length in centimetres and deflection in millimetres must both become metres before you substitute.
Mixing up which field gives which equation. The balance condition uses both fields; the deflection step uses only E.
Sign of the force. For a negative charge the magnetic force is opposite to what the right-hand rule gives for a positive charge. Our guide to magnetic force and the right-hand rule covers this.
If you keep choosing the wrong equation in multi-step problems like this one, the Fermi Problem Library has worked problems with a step-by-step solver that explains the reasoning rather than printing an answer.
What can a student take from how he worked?
Fix the apparatus before you trust the null result. The electric deflection was missing until he improved the vacuum. A failed experiment may be a faulty set-up.
Vary everything you can. He changed gases and electrode metals and got the same e/m every time. That is what made the particle universal.
Use analogies you already know. He explained the deflection by comparing it to a falling bullet, the same projectile maths you learned in Class 11.
Measure ratios when single values are out of reach. He could not measure e or m alone in 1897, but e/m was enough to show the particle was far lighter than an atom.
The next step was measuring the charge itself; read about Millikan's oil-drop experiment, and then how Rutherford's gold foil experiment replaced Thomson's picture of the atom.
Try it: repeat the worked example with B = 4.0 × 10⁻⁴ T and the same E, and work out the new deflection.
