Before 1841, every engineering workshop in the world made its own custom screws and bolts. There was no guarantee that a nut made in one town would fit a bolt made in another. If a steam engine broke down, replacement parts could not be ordered from a catalogue; they had to be machined from scratch to match the unique threads of that specific engine.
Joseph Whitworth, a British engineer, solved this problem by proposing the world's first national screw thread standard. His system turned fasteners from custom-crafted puzzles into universal, mass-produced components.
Why did screw threads need to be standardised?
During the early Industrial Revolution, mechanics chose thread angles and pitches based on habit or whatever tools they had on hand. Some cut sharp, deep threads; others cut shallow, wide ones. This lack of uniformity made large-scale manufacturing and repair incredibly slow and expensive (Wikipedia).
To find a workable compromise, Whitworth spent years collecting sample bolts from major British engineering firms. He averaged their dimensions to find a geometry that offered the best balance of strength and ease of manufacturing.
What are the rules of the 55° thread angle?
In 1841, Whitworth presented a paper titled *"A Paper on an Uniform System of Screw Threads"* to the Institution of Civil Engineers (Wikipedia). He laid out three strict geometric rules that came to be known as British Standard Whitworth (BSW):
Thread Angle: Fixed exactly at 55°. This angle was an ideal compromise between the strength of sharper threads and the manufacturing ease of shallower ones.
Threads Per Inch (TPI): A specific pitch was assigned to every standard bolt diameter, for example, a 1/4-inch bolt always had 20 threads per inch.

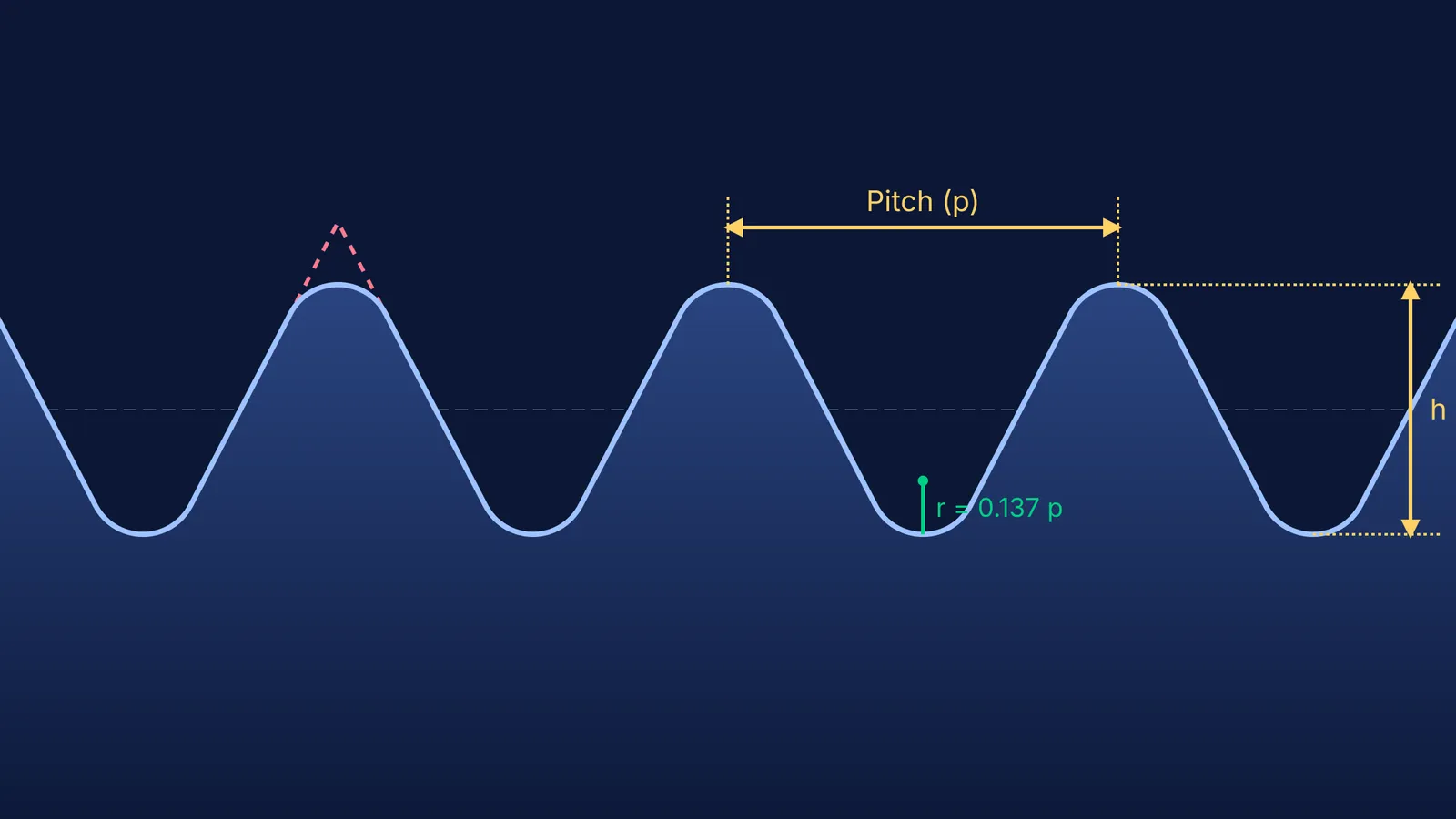

Rounded Crests and Roots: Instead of leaving the peaks (crests) and valleys (roots) of the thread sharp, Whitworth specified that they must be rounded. The radius of this curve was set at 0.137 times the pitch, leaving an actual thread depth of 0.64 times the pitch.
The rounded roots were particularly important because sharp internal corners act as stress concentrators, making bolts prone to snapping under heavy loads. Rounding them made the fasteners far more durable.
When you study mechanics or materials science, understanding how geometric choices affect physical forces is a core skill. If you are practising these principles and struggling to set up the free-body diagrams, the Fermi Problem Library has a step-by-step solver that explains the reasoning rather than printing an answer.
How did interchangeability change manufacturing?
Whitworth’s standard was quickly adopted by the British railway system and the Royal Navy. During the Crimean War in 1855, the Navy used BSW threads to mass-produce engines for their gunboats—90 sets of engines were built in just 90 days (Wikipedia). For the first time, a damaged engine could be repaired in the field using spare parts from a completely different factory.
When engineers deal with older British threads or convert them to metric systems today, they often have to double-check their math, much like converting a quantity between unit systems using dimensions to ensure accuracy. The same emphasis on standardising physical properties applies across mechanical engineering, from simple fasteners to calculating the radius of gyration: what it means and quick Class 11 problems for rotating machine parts.
How can you identify a Whitworth thread today?
If you are restoring vintage machinery and need to check if a bolt follows Whitworth's geometry, you can look for three distinct features:
The 55° Angle: Check the flanks with a standard thread gauge; metric and US threads use 60°.
The Pitch: Count the threads per inch and match them against a BSW standard table for that specific bolt diameter.
The Profile: Inspect the threads under a magnifying glass to confirm both the crests and roots are smoothly rounded.
