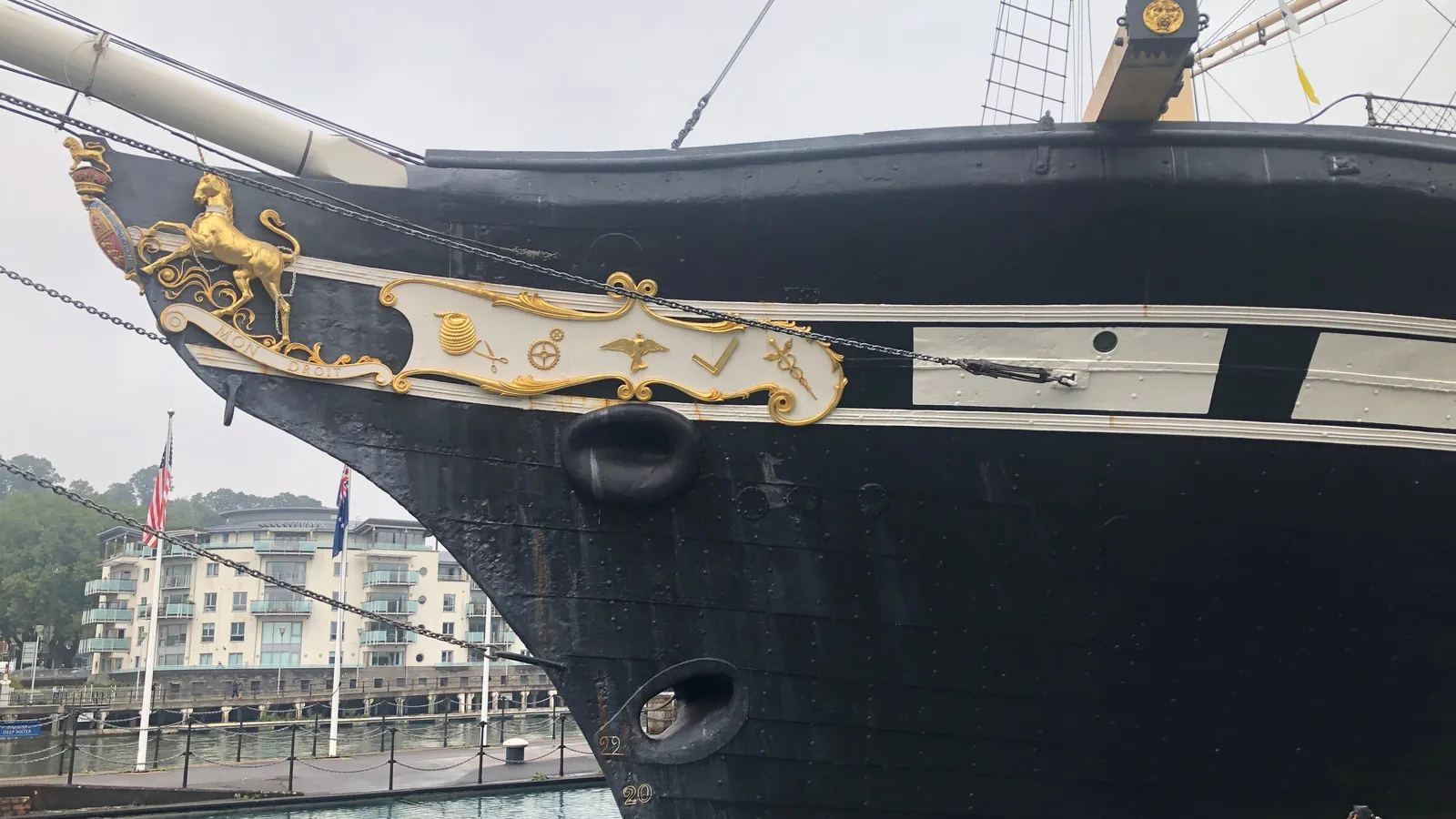

When Isambard Kingdom Brunel launched the SS Great Britain in July 1843, he unveiled a vessel that changed maritime engineering. Until then, large ships were built from wood and driven by wind or steam-powered paddle wheels. The SS Great Britain was the first large vessel to combine two major innovations: a wrought-iron hull and a screw propeller. This combination allowed it to become the first iron-hulled, screw-propelled ship to cross the Atlantic, proving that iron and screws were the future of ocean travel (Wikipedia).
Why did Brunel build an iron hull?
For centuries, the size of a ship was limited by the structural properties of wood. When a long wooden ship rides over large ocean waves, the uneven support of the water creates immense bending forces. The hull tends to bend over the crest of a wave, causing the middle to hog (bend upwards) or sag in the troughs. Iron is much stronger and more rigid than wood, allowing builders to construct much longer vessels without the hull breaking under its own weight.
By using lapped and double-riveted iron plates, Brunel was able to build the SS Great Britain to a length of 322 feet (98 meters) (Wikipedia). Upon its launch, it was the largest ship in the world, a title it held until 1853. The iron construction also meant the hull could be thinner than a wooden one of the same strength, providing more internal space to carry 360 passengers and 1,200 tons of cargo. For safety, Brunel incorporated five watertight bulkheads, dividing the ship into independent sections that could isolate leaks.
Brunel's integrated design approach required him to solve new engineering problems regarding the stresses on a large iron hull. If you are working through complex mechanics questions yourself and getting stuck, the Fermi Problem Library has worked problems with a step-by-step solver that explains the reasoning rather than printing an answer.
How did the screw propeller replace the paddle wheel?
Initially, Brunel intended to use large paddle wheels to drive the SS Great Britain. However, he changed his design mid-construction after observing the experimental steamship *Archimedes*, which used a screw propeller (Wikipedia).
Paddle wheels are inefficient in rough open oceans. As a ship rolls side to side, one paddle wheel lifts completely out of the water while the other plunges too deep. This wastes energy and puts sudden, uneven stress on the steam engine. A screw propeller, mounted low at the stern, stays constantly submerged regardless of how much the ship rolls.
To take advantage of this continuous thrust, Brunel equipped the SS Great Britain with a 1,000-horsepower engine to drive a six-bladed screw propeller measuring 15 feet 6 inches in diameter. Understanding the rotational forces of a propeller requires a solid grasp of mechanics (for more on this, see our guide on Torque as r × F: finding torque about a point with vectors). If you find rotational motion and fluid dynamics hard to picture, the Fermi Simulation Lab offers interactive simulations for the ideas that are easier to see than to read.
Did the SS Great Britain cross the Atlantic?
Yes. On July 26, 1845, the SS Great Britain departed Liverpool for New York on its maiden transatlantic voyage (Wikipedia). The journey took 14 days and 21 hours.
This successful crossing made wooden paddle-wheelers obsolete for long-distance commercial routes. It proved that an iron steamship could carry enough coal, cargo and passengers to be commercially viable across wide oceans, freeing ships from relying entirely on wind.
The innovations of the SS Great Britain built on earlier experiments with steam power, such as Denis Papin and the pressure cooker of the 1600s. By proving that a screw propeller and an iron hull worked together on a large scale, Brunel paved the way for every modern ocean liner that followed.
How to approach problems like an engineer
Brunel's success with the SS Great Britain offers a practical framework for tackling difficult problems in your own studies or career:
Start with the constraints: Understand what is limiting your current approach. For Brunel, the limitation was the structural weakness of wood.
Look outside your field: Brunel didn't invent the screw propeller; he observed it on another ship and recognised its potential for his own project.
Be willing to pivot: If new evidence shows a better way, do not cling to your original plan. Brunel redesigned the ship's propulsion system mid-construction.
Design the whole system: Changing to a screw propeller meant changing the engine to match. When you change one variable in a complex problem, adjust the rest of your system to support it.
