In the early 19th century, mining coal was a deadly gamble. As miners dug deeper into the earth to fuel the rapidly accelerating Industrial Revolution, they encountered naturally occurring pockets of methane gas, known to them as "firedamp."
When mixed with atmospheric air in concentrations between 4.4% and 17%, methane becomes a highly explosive mixture. Because miners relied entirely on open-flame candles for illumination in the pitch-black tunnels, a single spark could ignite the gas, triggering catastrophic underground explosions. Following the Felling mine disaster of 1812, which killed 92 men and boys, the Society for Preventing Accidents in Coalmines turned to the chemist Humphry Davy for an urgent solution.
How did Humphry Davy's safety lamp work?
In 1815, Davy realised through experimentation that a flame cannot pass through a fine metal mesh. He designed a simple device: an oil lamp where the open flame was completely enclosed by a protective cylinder of iron wire gauze.
This design allowed surrounding air and methane to pass freely into the lamp to feed the internal flame, but successfully prevented the flame from travelling back out to ignite the larger tunnel.

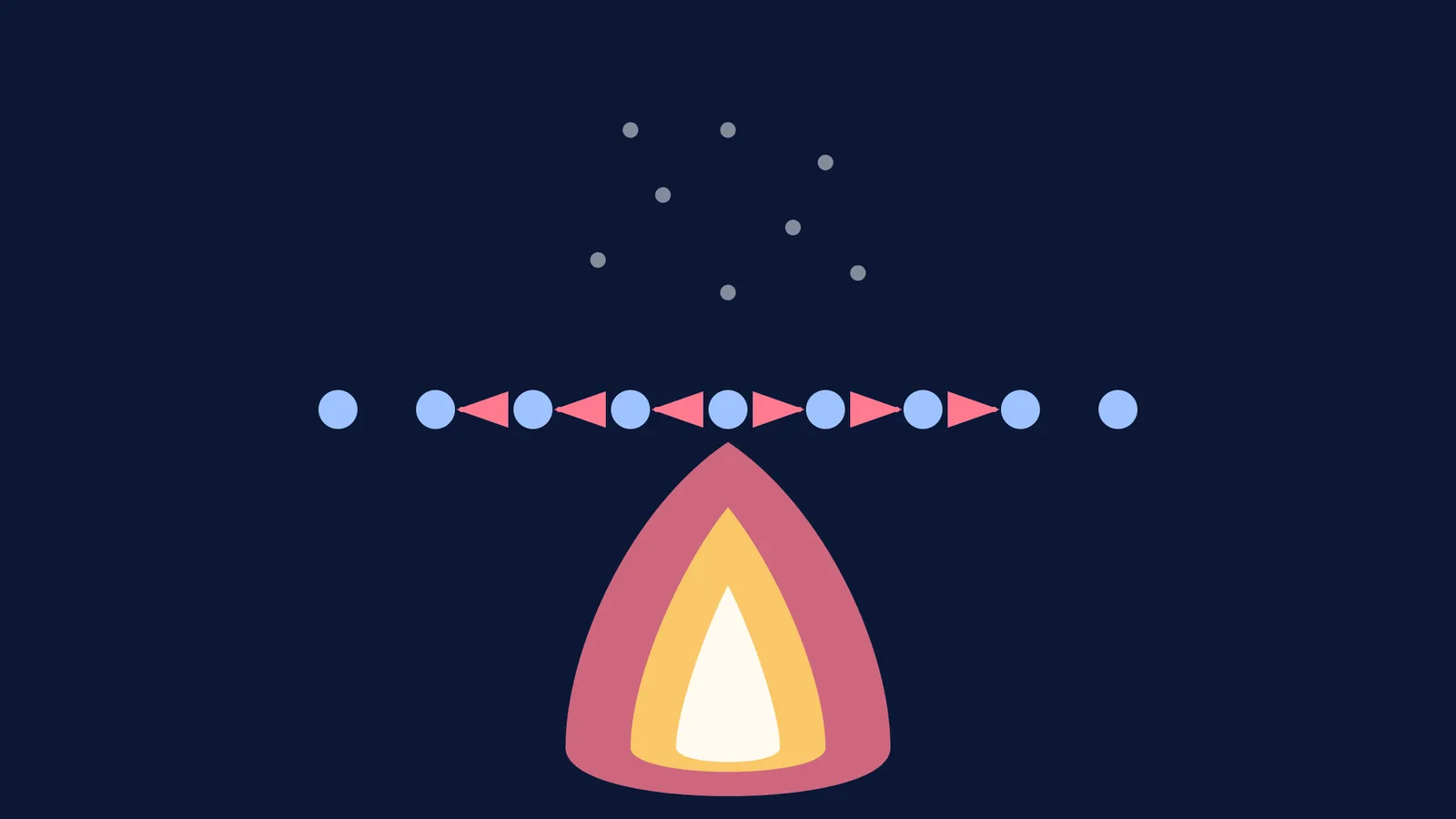

The principle underlying the lamp was thermal conductivity. Methane has a relatively high autoignition temperature of about 537 °C. Iron, conversely, is an excellent conductor of heat. When the flame inside the lamp burned, the iron wires rapidly absorbed the intense heat and dissipated it across the entire surface of the cylinder. By the time the hot combustion gases passed through the mesh to the outside, they were cooled well below the 537 °C threshold required to ignite the firedamp in the wider mine.
What was the physics of thermal conductivity?
Davy's invention turned a deadly environment into a manageable one. It even served as a rudimentary gas detector. If firedamp was present in the mine, the flame inside the lamp would burn higher and develop a distinctive blue "cap," warning the miners to immediately evacuate. It also detected oxygen-poor environments; the flame systematically extinguished when oxygen levels dropped below 17%, warning of severe asphyxiation risks.
This principle of heat dissipation is still taught extensively in thermal physics and physical chemistry classrooms today. Understanding exactly how metallic materials conduct heat, and why certain gas reactions need a specific activation energy to sustain a chain reaction, remains a staple of physical chemistry. If you find yourself struggling to visualise how gas molecules collide or how heat transfers across a boundary layer, Fermi's AI tutor can help. It works out what you already know, builds a plan for the session, and teaches through it — drawing the figure and running the simulation to check your understanding as it goes.
Did the safety lamp solve the firedamp problem?
While the Davy lamp prevented direct ignition from the flame, it created a tragic paradox. Because they now possessed a theoretically "safe" light, mine owners forced miners to work in far deeper, more dangerous coal seams that had previously been abandoned. Furthermore, the delicate iron gauze could rust in the damp underground conditions or heat up dangerously if exposed to high-velocity air currents. If a miner swung the lamp too quickly while walking, the internal flame could be physically forced through the mesh to the outside.
It took further mechanical innovations, and the subsequent biological work of scientists like John Scott Haldane and the animals that warned miners, to comprehensively tackle coal mine safety in the 19th and 20th centuries. Yet, Davy's 1815 invention remains a key example of applied chemistry: using the fundamental physical properties of a simple metal net to tame the average molar mass of a gas mixture that threatened lives daily.
By famously refusing to patent his invention, proudly declaring his scientific work was solely for the "cause of humanity," Davy ensured his heat-sink principle could be freely copied, improved, and adopted by engineers worldwide.
