In January 1836, Michael Faraday walked into the lecture theatre at the Royal Institution in London and stepped inside a 12-foot square wooden room. He had lined its walls with paper, metal foil and wire mesh, and mounted the structure on four glass supports to isolate it from the ground.
Once he was inside with an electroscope, an assistant turned on an electrostatic generator. The outside of the room was electrified with high-voltage charges until sparks darted off from its outer surface.
Yet inside the room, the electroscope registered no charge at all. Faraday stood inside his electrified room, proving on a human scale what we now call the Faraday cage effect: an electrical charge on a closed conductor resides entirely on its outer surface, leaving the interior completely shielded from electrical forces.
What is the history of the Faraday cage experiment?
Before 1836, many scientists believed electricity was an invisible fluid that flowed through matter. Faraday's experiment challenged this by showing that the space inside the charged matter remained entirely unaffected.
By standing inside the cage, Faraday demonstrated electrostatic induction. When the external high voltage was applied, the mobile electrons within the metal foil and wire mesh instantly redistributed themselves. They moved in such a way that their own electric field exactly cancelled the external electric field everywhere inside the conductor.
This is why aeroplanes act as Faraday cages today, protecting passengers from lightning strikes by safely routing the current around the exterior cabin shell.

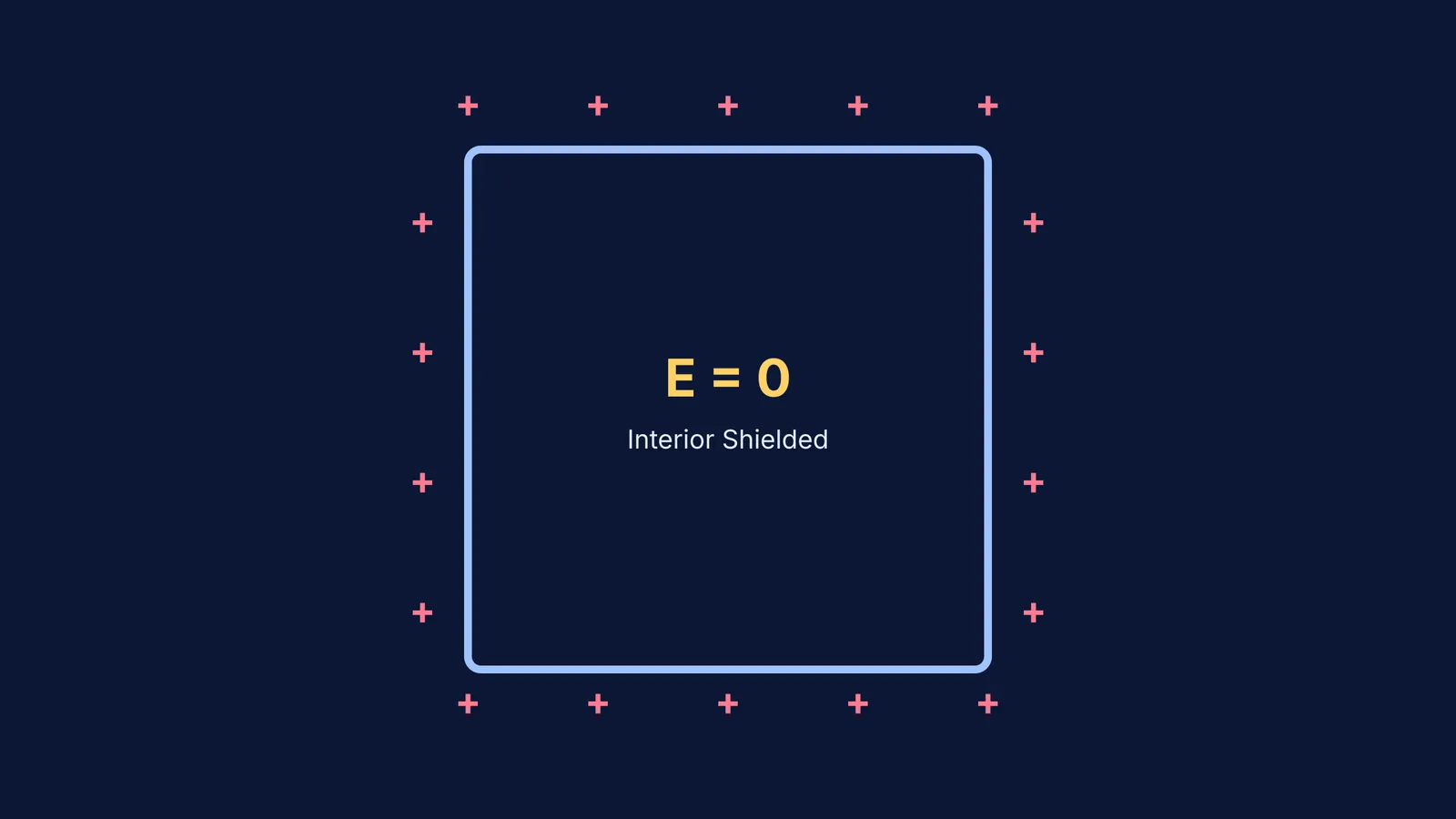

Why is the electric field zero inside a hollow conductor?
In electrostatics, the electric field inside any solid conducting material must be zero when it is in electrostatic equilibrium. If there were an internal electric field, it would exert a force on the free electrons. These electrons would move, creating a temporary current, until they settled into a new arrangement where their own field exactly cancelled the original field. Once equilibrium is reached, the net electric field everywhere inside the conducting material is zero.
When you hollow out the conductor, creating a room like Faraday's, Gauss's Law explains why the cavity remains shielded. Gauss's Law states that the electric flux through any closed surface is proportional to the enclosed charge. If we draw a mathematical boundary (a Gaussian surface) entirely within the conductive walls of the room, the electric field along this surface is zero. Because the field is zero, the total flux is zero, meaning the net charge enclosed by the surface must also be exactly zero.
Therefore, any excess high-voltage charge supplied to the room by an external generator has nowhere to go but the outermost boundary. The inner walls and the entire volume of the room remain perfectly neutral.
If you struggle to picture how these fields cancel out perfectly, the Fermi Concept Library holds every concept in physics, chemistry, biology, mathematics and computing, each with its own lesson to help you visualise Gauss's Law and watch field lines automatically re-route around conductors.
How to solve Faraday cage problems in JEE Main and NEET-UG?
The shielding principles proven in the 1836 experiment are tested relentlessly in competitive physics exams. The most common variation involves placing point charges inside or outside a thick conducting shell and asking for the resulting potentials or field strengths.
Here is a foolproof framework for solving them step by step:
Charge inside a cavity: If a point charge +q is placed inside the cavity of a hollow conductor, it induces an equal and opposite charge -q on the inner surface of the cavity. This ensures the field inside the metal remains zero.
Charge conservation: If the conducting shell was initially uncharged, pulling -q to the inner surface means a charge of +q is left stranded on the outer surface. If the shell already had a net charge Q, the outer surface now holds Q + q.
External charges: Any charges placed entirely outside the shell will only affect the distribution of charge on the outer surface. The inner surface and the cavity space remain completely shielded from external influence.
When multiple concentric shells are involved, you just apply this logic sequentially from the inside out. For a deep dive into solving these nested shell scenarios, read our guide on Concentric spherical shells: charges, potentials and earthing one. You can also apply similar mathematical reasoning when calculating the Energy density in an electric field: u = ε₀E²/2 worked around these conducting boundaries.
If you keep dropping minus signs in these multi-step setups, the Fermi Problem Library has worked problems with a step-by-step solver that explains the reasoning rather than printing an answer, catching exactly where you go wrong with induced charges and boundary conditions.
Since 1836, Faraday's intuitive leap from a foil-covered room to the fundamental laws of fields remains one of the most elegant proofs in physics. The next time you lose your phone signal inside a metal elevator, you are experiencing exactly what Faraday did. The ability to shield spaces from electromagnetic fields is not just a historical curiosity, but a critical foundation for modern technology, ensuring that everything from sensitive medical equipment to daily communications functions reliably.
