Rectifier questions look like circuit diagrams, but most of them are really questions about a waveform: how often it repeats, what its average is, and how much it wobbles. This post derives the numbers you need for half-wave and full-wave rectifiers, works one transformer example through to the capacitor filter, and lists the traps.
What does each syllabus include?
The CBSE 2026-27 physics curriculum lists the "diode as a rectifier", and the JEE (Main) 2026 and NEET (UG) 2026 syllabi list "diode as a rectifier" under Electronic Devices. The NCERT Semiconductor Electronics chapter describes the half-wave rectifier, the centre-tap full-wave rectifier and the capacitor filter, and notes that a four-diode full-wave circuit needs no centre tap. The average-voltage, ripple and peak inverse voltage results below go further than NCERT, so they are derived here rather than quoted. Check your own year's syllabus.
How do the two circuits differ?
In a half-wave rectifier, NCERT explains, the diode conducts when the transformer terminal is positive and blocks when it is negative, so the load sees only the positive half-cycles. NCERT also notes that the diode's reverse breakdown voltage must be well above the peak ac voltage of the secondary.
In the centre-tap full-wave rectifier, each diode is connected to one end of the secondary and the output is taken from the centre tap. Each diode rectifies only half the total secondary voltage, and the two conduct on alternate half-cycles, so the load gets a pulse every half-cycle.
That gives the first exam result straight away. With 50 Hz input, which NCERT uses in its exercises, the half-wave output repeats at 50 Hz and the full-wave output at 100 Hz.
What are the average and rms outputs?
Take the input as V = Vm sin ωt and treat the diodes as ideal.
Half-wave average. Over one full cycle the output is Vm sin θ for half the cycle and zero for the other half. The average is (1/2π) × ∫ from 0 to π of Vm sin θ dθ = (1/2π) × 2Vm = Vm/π, about 0.318 Vm.
Full-wave average. Twice as many pulses, so 2Vm/π, about 0.637 Vm.
rms values. A full sine wave has rms Vm/√2. Full-wave rectification only flips the negative halves, so its rms is also Vm/√2. Half-wave keeps half the energy, so its rms is Vm/2.
The ripple factor compares the ac part of the output with the dc part: r = √[(Vrms/Vdc)² − 1]. Putting in the values above gives about 1.21 for half-wave and 0.48 for full-wave. The full-wave output is much smoother before any filter is added.

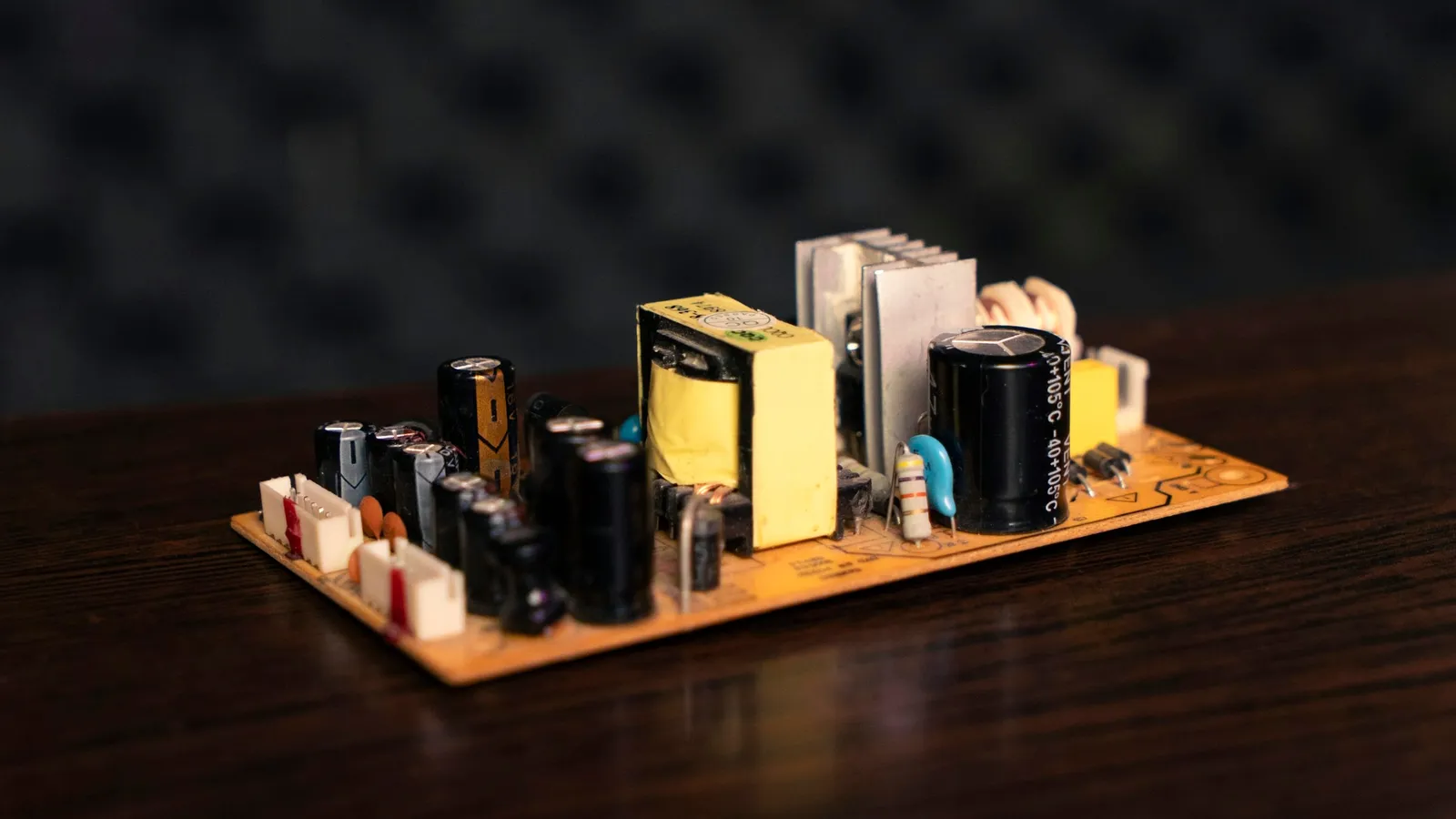

Worked example: from transformer to filtered output
A transformer gives 12 V rms. In the full-wave case, assume each half of a centre-tapped secondary gives 12 V rms. The load is 1.0 kΩ.
Peak voltage: Vm = 12 × √2 = 17.0 V.
Half-wave average: 17.0 ÷ π = 5.4 V, so the average load current is 5.4 mA.
Centre-tap full-wave average: 2 × 17.0 ÷ π = 10.8 V, and 10.8 mA.
Peak inverse voltage on each centre-tap diode: 2 × 17.0 = 34 V. In the half-wave circuit it is 17.0 V.
With real silicon diodes, subtract about 0.7 V per conducting diode, the threshold NCERT gives. In a bridge, two diodes conduct at once, so the peak output from a 12 V rms secondary is about 17.0 − 1.4 = 15.6 V.
How does a capacitor filter reduce ripple?
NCERT describes the filter qualitatively: the capacitor charges to the peak, then discharges through the load until the next pulse recharges it, and the fall is slower when the time constant RC is large. That is why filters use large capacitors.
You can estimate the ripple. Between pulses the capacitor supplies a current of about Vm/R for one pulse period T, so the voltage drops by ΔV ≈ (Vm/R) × T ÷ C = Vm ÷ (f R C), where f is the pulse frequency.
Add a 1000 µF capacitor to the example. Here RC = 1000 Ω × 0.001 F = 1.0 s, far longer than the 10 ms between full-wave pulses, so the estimate is fair.
Full-wave, f = 100 Hz: ΔV ≈ 17.0 ÷ (100 × 1000 × 0.001) = 0.17 V.
Half-wave, f = 50 Hz: ΔV ≈ 0.34 V, twice as much.
The output now sits close to the peak, as NCERT says, rather than at the unfiltered average.
Which mistakes should you avoid?
Using the input frequency for a full-wave output. It doubles.
Using rms where the question asks for peak, or the reverse. Transformer ratings are rms.
Giving the centre-tap diode a peak inverse voltage of Vm.
Forgetting that each half of a centre-tap secondary supplies only half the total voltage.
Using the input frequency in the ripple estimate for a full-wave filter.
The rms idea comes from ac circuits; if it is shaky, revise it with our ac circuits and phasors guide, and our post on diode forward and reverse characteristics explains the 0.7 V drop. Waveforms are easier to understand when you can watch them change; the Fermi Simulation Lab has interactive simulations for ideas that are easier to see than read.
A practice routine
Day 1: sketch input and output waveforms for half-wave, centre-tap and bridge circuits, marking the period of each.
Day 2: derive the average and rms values once, then solve four numerical problems.
Day 3: three peak inverse voltage problems and three ripple estimates with a capacitor filter.
Day 4: a timed set of previous-year rectifier questions.
Today, redo the worked example for a 9 V rms transformer and check that every answer scales by 9/12.
